Single Crystalline Diamond

Single-crystal diamonds are composed of a single, continuous crystal lattice structure. Single crystalline diamonds exhibit remarkable hardness and are transparent to a broad window of the electromagnetic spectrum ranging from ultraviolet to radio waves.

They also exhibit exceptional thermal conductivity, allowing them to effectively dissipate heat. These characteristics make single-crystal diamonds highly valuable for various applications, including cutting tools, high-power electronics, photonics, and advanced research.

We specialize in developing single-crystalline diamonds with exceptional optical profiles and targeted properties through controlled defects during growth.

We have achieved

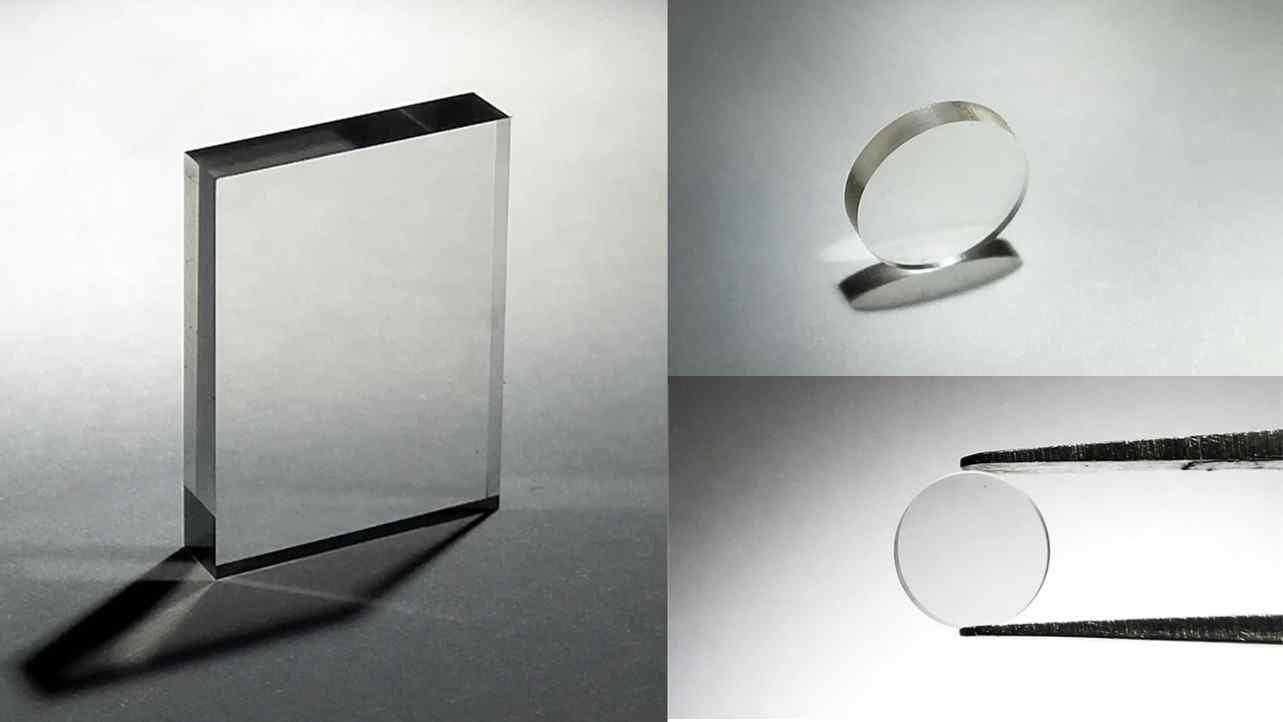

SCD blocks of over 5 mm thickness
Thickness tolerance of +/-10 microns
Ultrapure SCD with controlled-defects
Surface roughness of less than 2 nm

Polycrystalline Diamond

Unlike single-crystal diamonds with a uniform and continuous crystal lattice structure, polycrystalline diamonds comprise multiple tiny diamond crystals (grains) with random orientations. These multiple tiny crystals are connected together without using any binder, unlike sintered PCD. At Gleam Innovations, we grow high-quality binder-free CVD polycrystalline diamonds using MPCVD with excellent control over properties like high wear resistance, hardness, tunable thermal conductivity, optical, and corrosion resistance, etc.

Having excellent control over the process, we attain specific properties, such as high precision in thickness, purity, composition and morphologies, to achieve a broad range of desired scientific and technological applications.

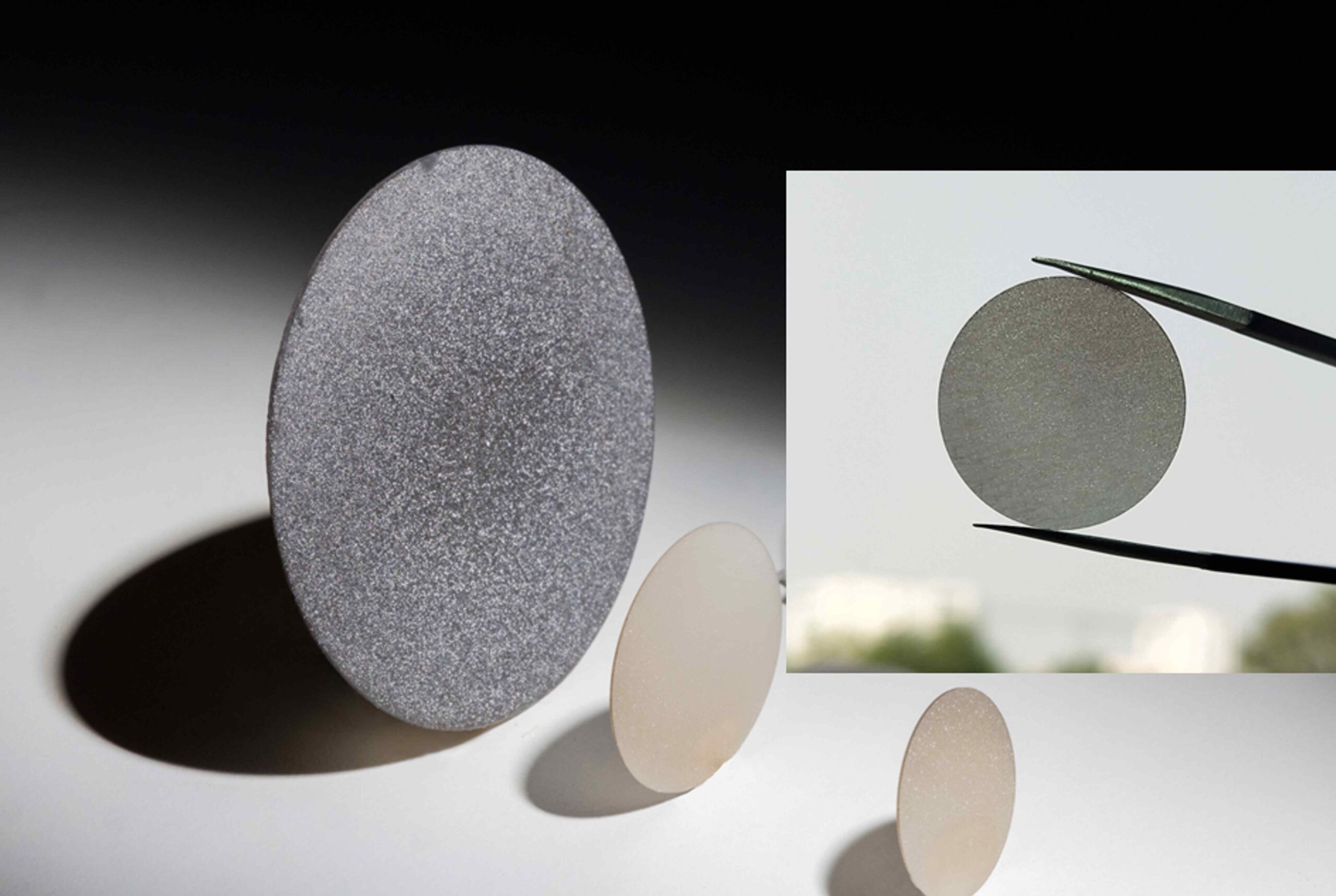

Having expertise in creating new diamond process protocols, we have successfully grown 52 mm polycrystalline diamond discs, highly uniform pure PCD wafers of various tailored microstructures and targeted properties

52 mm PCD discs
Precision in the control of thickness by +/-10 microns.
2 mm thick diamond discs
Surface roughness of less than 10 nanometers
Ultrapure diamond with sharp Raman peak at 1332 cm^-1 and low FWHM of less than 3 cm

Diamond Coating Technology

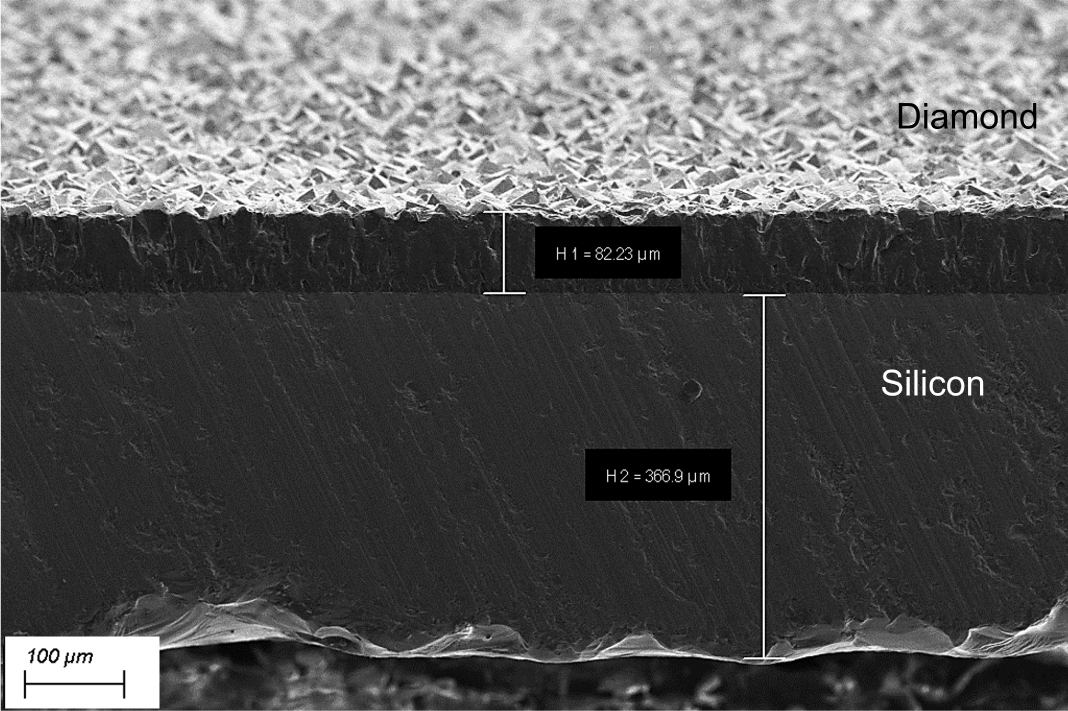

We have achieved micro to ultra-nano-thick diamond films with varied grain morphology and surface area. With growing excellence in our hot filament and microwave plasma CVD technology, Gleam Innovations continues innovating diamond coating applications across industries.

We offer diamond-coated tools with substrates of our client’s choice that align with specific applications pertinent to their industries. We have also developed our expertise in the diamond coating process on wear parts, leading to a substantial increase in the lifetime of the wear parts and thus reducing the industry’s operating expense.

What are the substrates we target?
